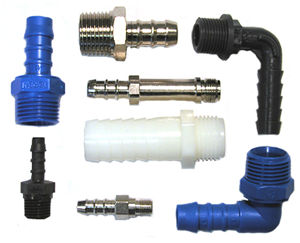

Hose Connectors Male Hose connectors
A range of plastic or Hose Connectors Male Hose
connectors brass hose connectors for use on flexible tubing supplied
with standard BSP thread sizes. Connectors need to be clamped to
hose for safe installation. See clamps. The fittings comply with
potable water supplies up to a maximum pressure of 10 bar. They are
used in a wide variety of both domestic and commercial applications.
The fittings can be supplied straight or bent (90 degree).
Male branch Tee hose connector
Hose internal diameter: from 6 -19mm. Thread sizes from 1/4"
- 1" BSP (gaz) and NPT tapered fittings. |
Male Elbow hose connector BSP/NPT
Hose internal
diameter: from 6 -19mm. Thread sizes from 1/4" - 1" BSP (gaz)
and NPT tapered fittings. |
Male straight hose connector BSP/NPT
Hose internal
diameter: from 6 -19mm. Thread sizes from 1/4" - 1" BSP (gaz)
and NPT tapered fittings. |
Hose Connectors Male Hose connectors Technical
Specification
Hose material |
Used with a simple PVC
braided tubing, garden hose or aquavend vending hose. |
Internal hose diameter |
6-19mm |
Thread size |
1/4 to 1 |
Working Pressure |
10 bar |
Materials |
Polyamide (nylon), 66.
Polypropylene. Brass, (nickel plated) |
Temperature |
Up to a maximum of 100 °C
depending on the selection. |
Approvals |
Complies with most
international water authorities depending on materials chosen.
WRAS, NSF, DVGW and KIWA. |
|
